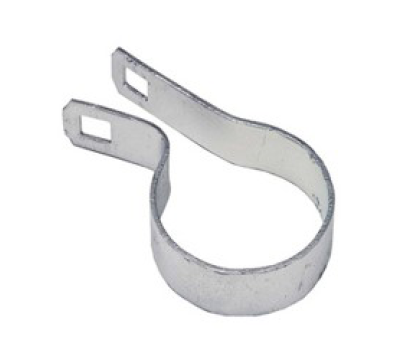

1-5/8" Galvanized Tension Band 20 Pack [14 Gauge]

Our 1-5/8” Tension Band [14 Gauge] was created to tighten your chain link material by connecting it to your tension bar or gate frame.

• Galvanized
• Available in black; part #10404B.
• For 1-5/8” diameter tubing
• Carriage nut and bolt not included

Details

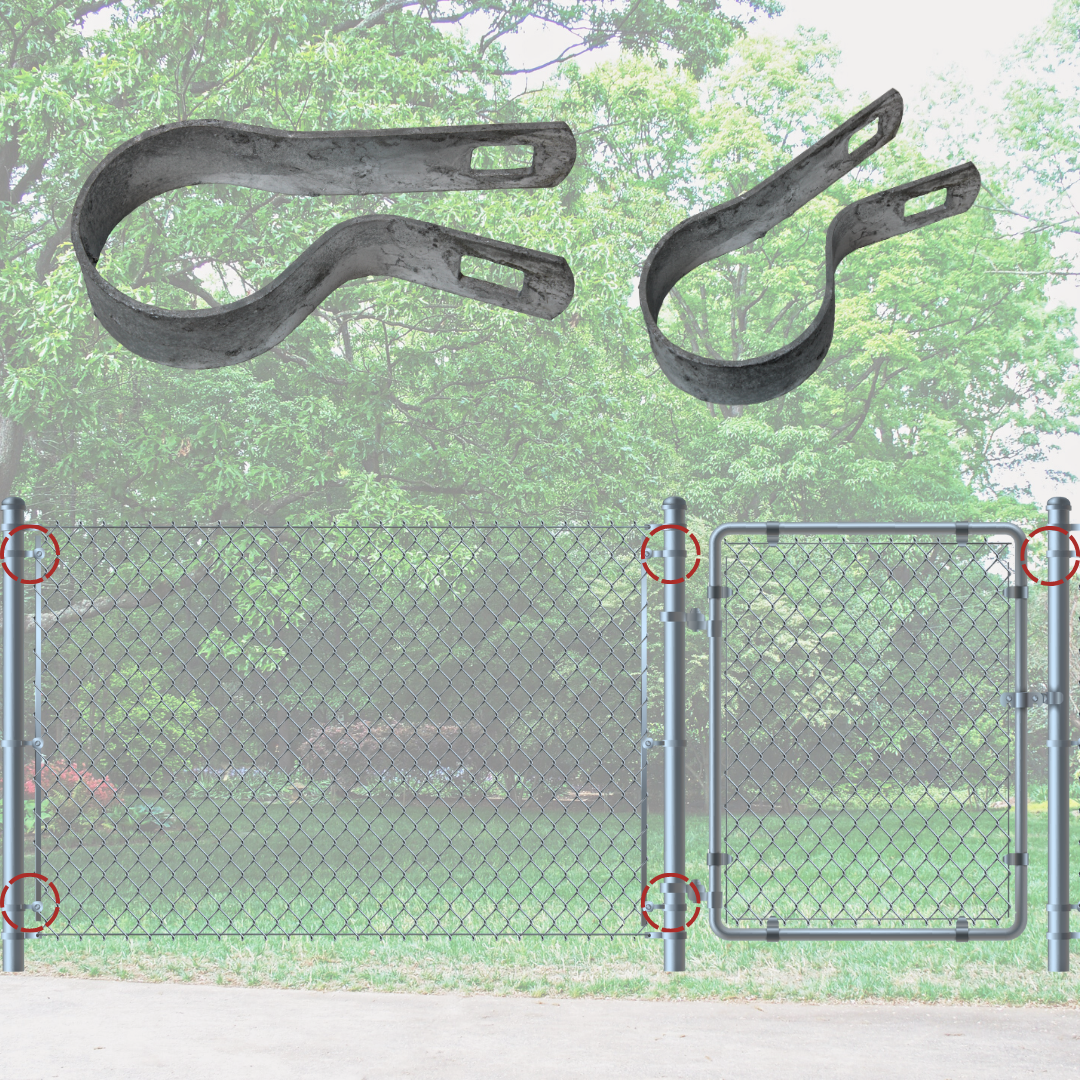

How the part fits? A 1-5/8"” tension band is designed to fit around a 1-5/8” terminal post.

Where is it installed? A 1-5/8” tension band is installed by sliding over the 1-5/8” terminal post once the post is set. Tension bands will be evenly placed on each terminal post.

How many do you need? You will need 1-5/8” tension bands for every stretch of fence. The amount of tension bands you will need per terminal post is 1 less than the height of the fence. For example, if you have a 4’ fence you will need (3) 1-5/8” Tension Bands per terminal post. There are two exceptions, if you have a 3’ or 3-1/2’ fence, you will need (3) 1-5/8” tension bands. For a full stretch of fence from terminal post to terminal post, you will need double the amount. Ex: For a stretch 4’ fence you will need (6) total 1-5/8” tension bands.

Specifications

1-5/8" post size, .23lbs

Instructions

A 1-5/8” tension band is installed by sliding it over the 1-5/8” terminal post once the post is set. You will need to space the 1-5/8” tension bands evenly on the terminal post. Then you will slide the 5/16” x 1-1/4” bolt through the tangs and tighten the nut.
