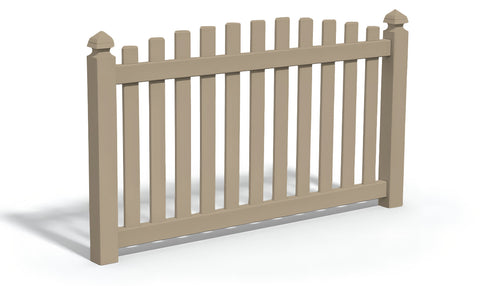

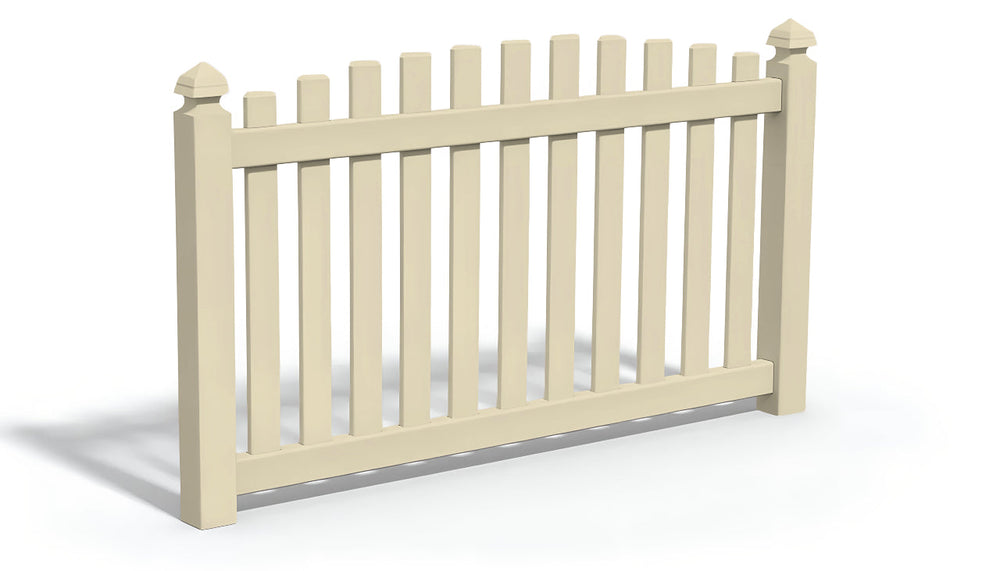

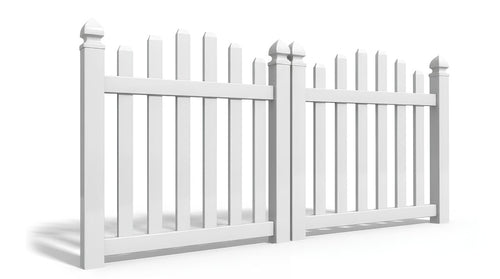

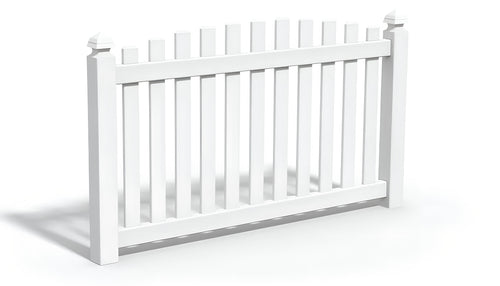

4' tall Vinyl Overscallop Fence (AFC-016)

View Product Details

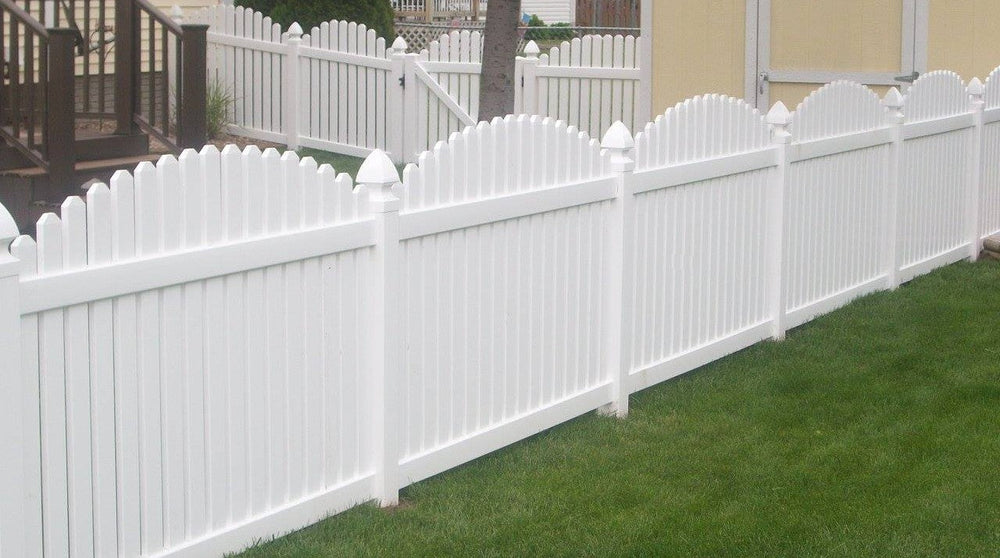

An overscallop vinyl fence adds a unique decorative curve design to your fence compared to the plain straight top!

The AFC-016 panel is spec'd at 49-3/16" tall by 73" wide (center to center) with a 2" reveal on the bottom and 3" air space between pickets. If you want to put the bottom rail flush to the ground, you can, but that will make it 47-3/16" tall instead. Please refer to the PDF of our panel installation spec drawing for better reference of dimensional aspects.

Each Panel Includes:

• 2 - 2" x 3-1/2" x 72" Hollow Utility Notched Rails Routed (Top & Bottom)
• 11 - 7/8" x 3" Standard Pickets (1 at 46-1/8" & 2 of each at these cut lengths:)
  • 45-7/8"
  • 45-1/8"
  • 43-3/4"
  • 41-7/8"
  • 39-1/8"
• 11 - 7/8" x 3" Dog-Eared Picket Caps

• 2 - #8 x 1" Silver Self Tapping Screws

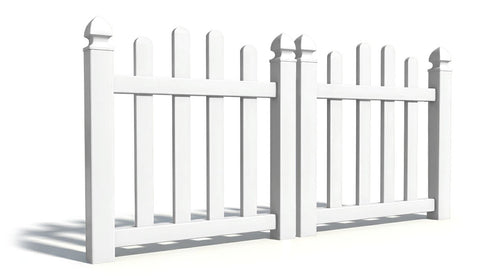

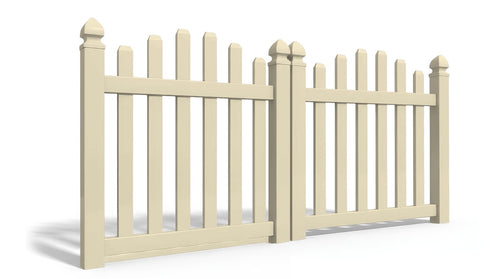

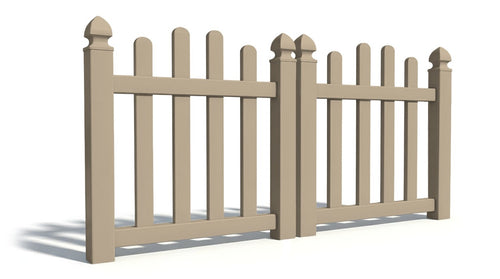

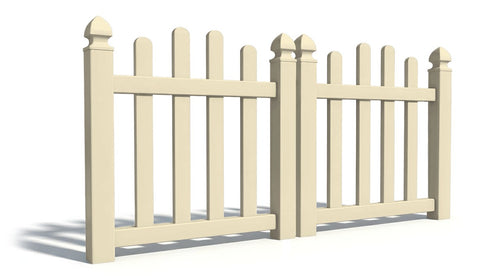

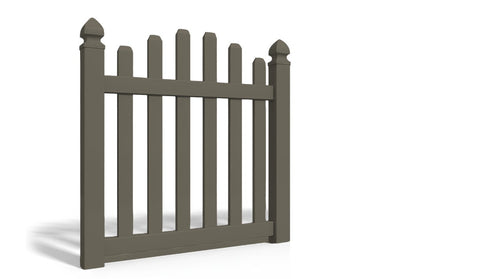

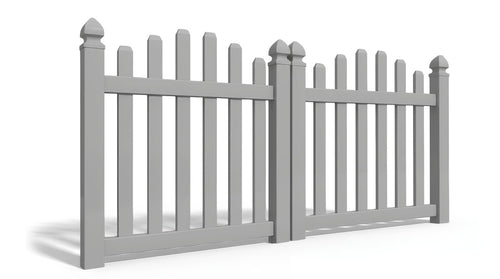

Compatible Posts, Caps, Glue, Gates & Gate Post Inserts Include:

• 4" x 4" x 64" Posts (for AFC-016)

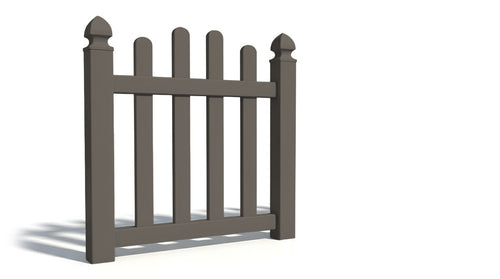

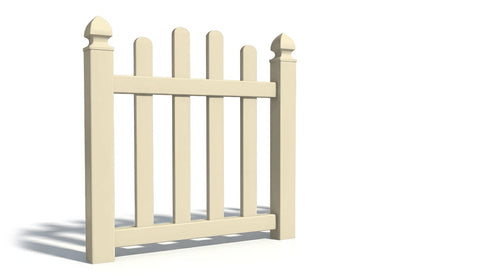

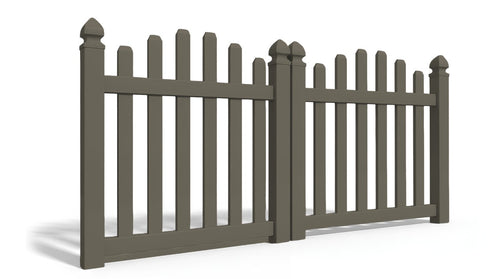

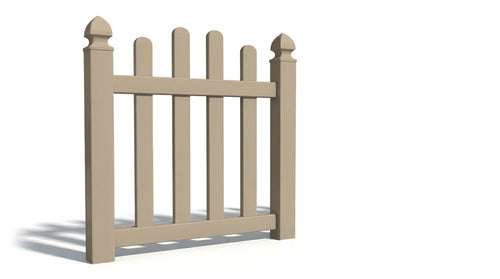

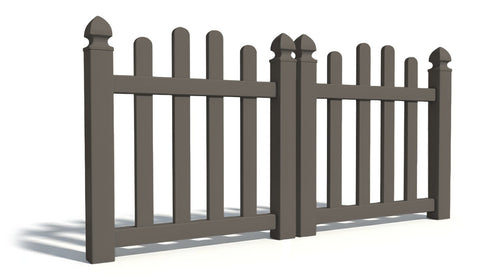

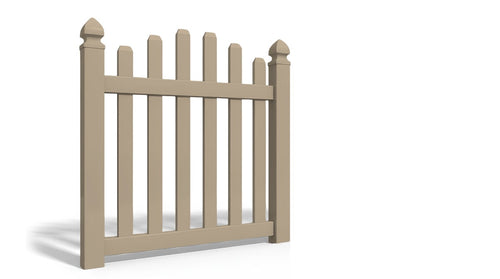

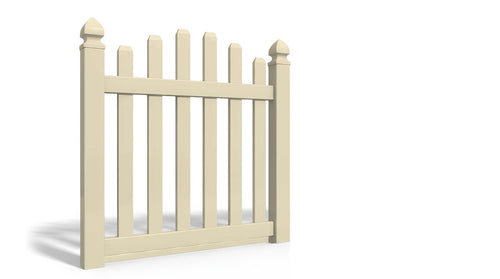

• 4" x 4" x 72" Gate Post Inserts
• 4" x 4" Post Caps
• 1.5oz or 6oz Vinyl Adhesive Glue
