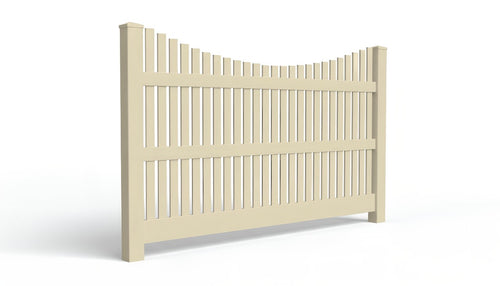

5' tall Vinyl Underscallop Fence (AFC-003)

View Product Details

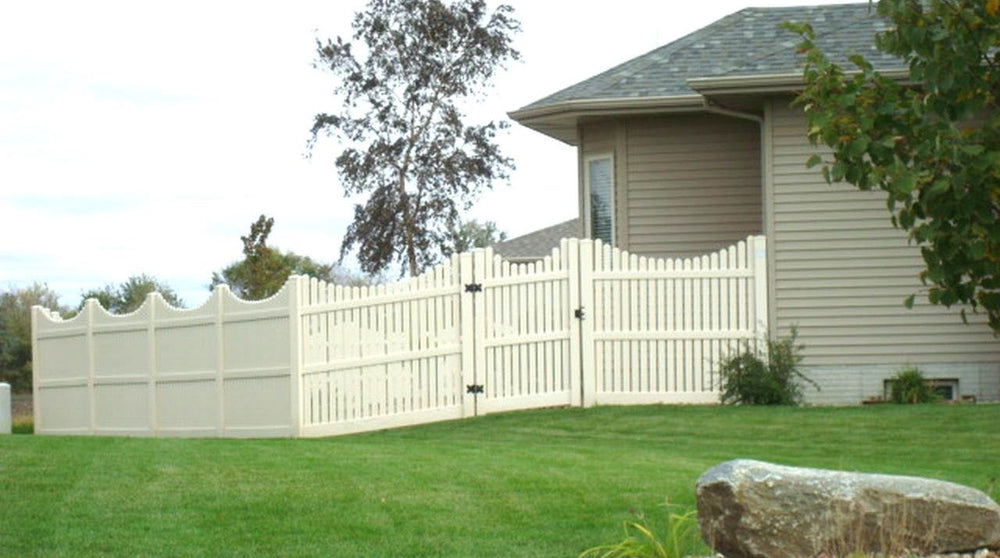

An underscallop vinyl fence adds a unique decorative curve design to your fence compared to the plain straight top!

The AFC-003 panel is spec'd at 60" tall by 96" wide (center to center) with a 2" reveal on the bottom and 1" air space between pickets. If you want to put the bottom rail flush to the ground, you can, but that will make it 58" tall instead. Please refer to the PDF of our panel installation spec drawing for better reference of dimensional aspects.

Each Panel Includes:

• 2 - 2" x 3-1/2" x 94" Hollow Utility Notched Rails Routed (Top & Middle)
• 1 - 2" x 6" x 94" Ribbed Notched Rail Routed (Bottom)
• 22 - 7/8" x 3" Standard Pickets (2 of each at these cut lengths:)

  • 53-1/2"
  • 51-3/8"
  • 49-5/8"
  • 48-1/8"
  • 46-7/8"
  • 46"
  • 45-3/8"
  • 45"
  • 44-3/4"
  • 44-5/8"
  • 44-1/2"
• 22 - 7/8" x 3" Dog-Eared Picket Caps

• 2 - #8 x 1" Silver Self Tapping Screws

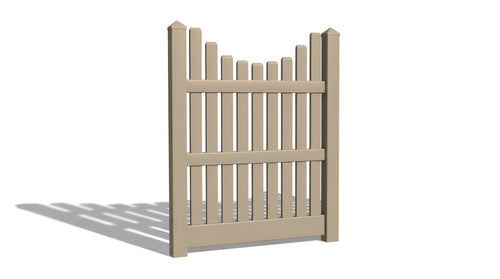

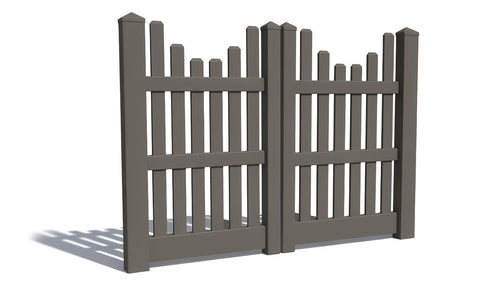

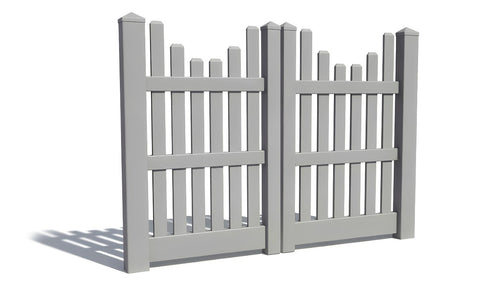

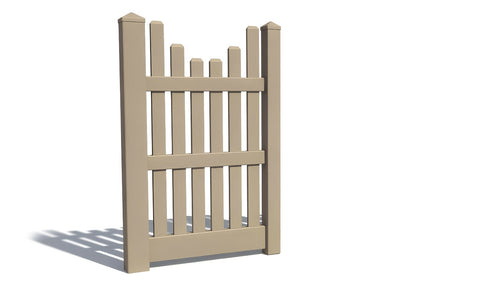

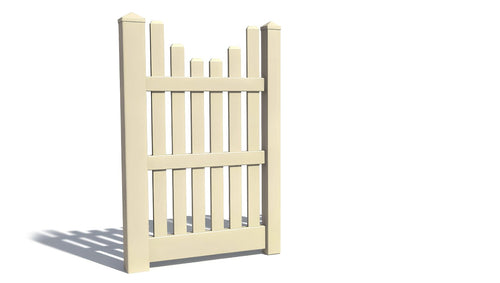

Compatible Posts, Caps, Glue, Gates & Gate Post Inserts Include:

• 5" x 5" x 84" Posts (for AFC-003)

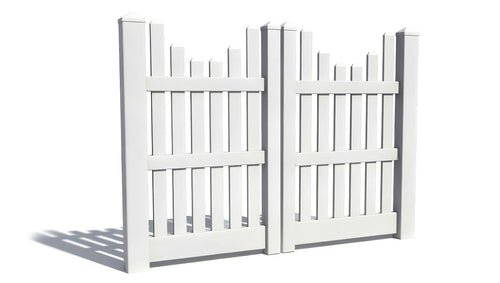

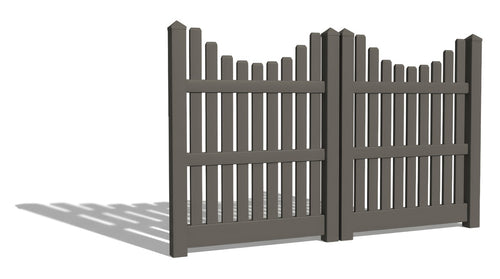

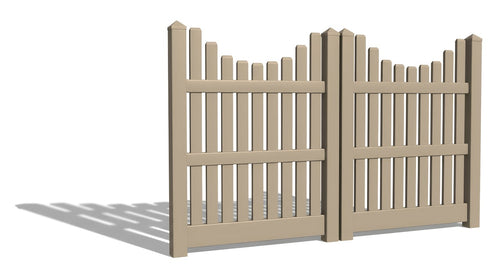

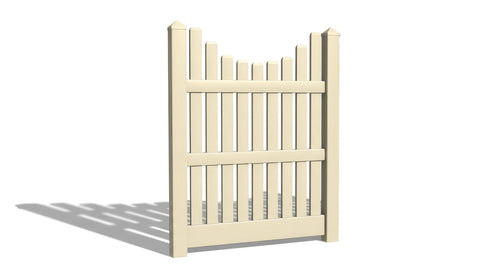

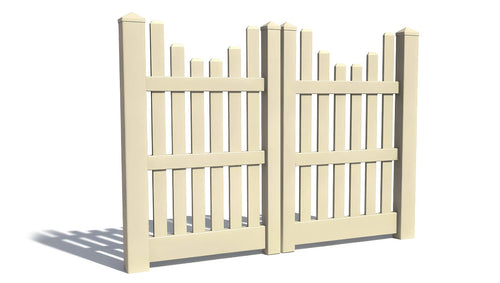

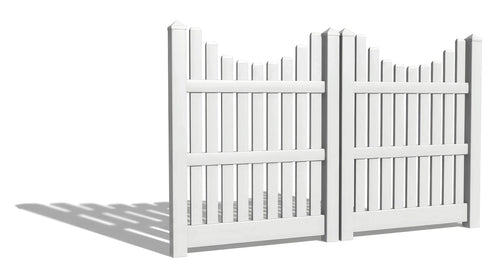

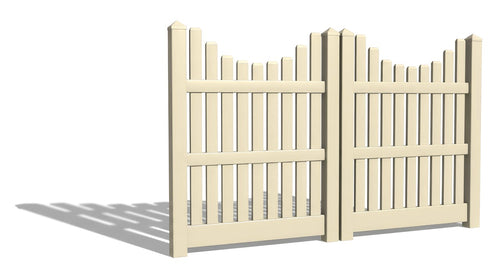

• 5" x 5" x 96" Gate Post Inserts
• 5" x 5" Post Caps
• 1.5oz or 6oz Vinyl Adhesive Glue
