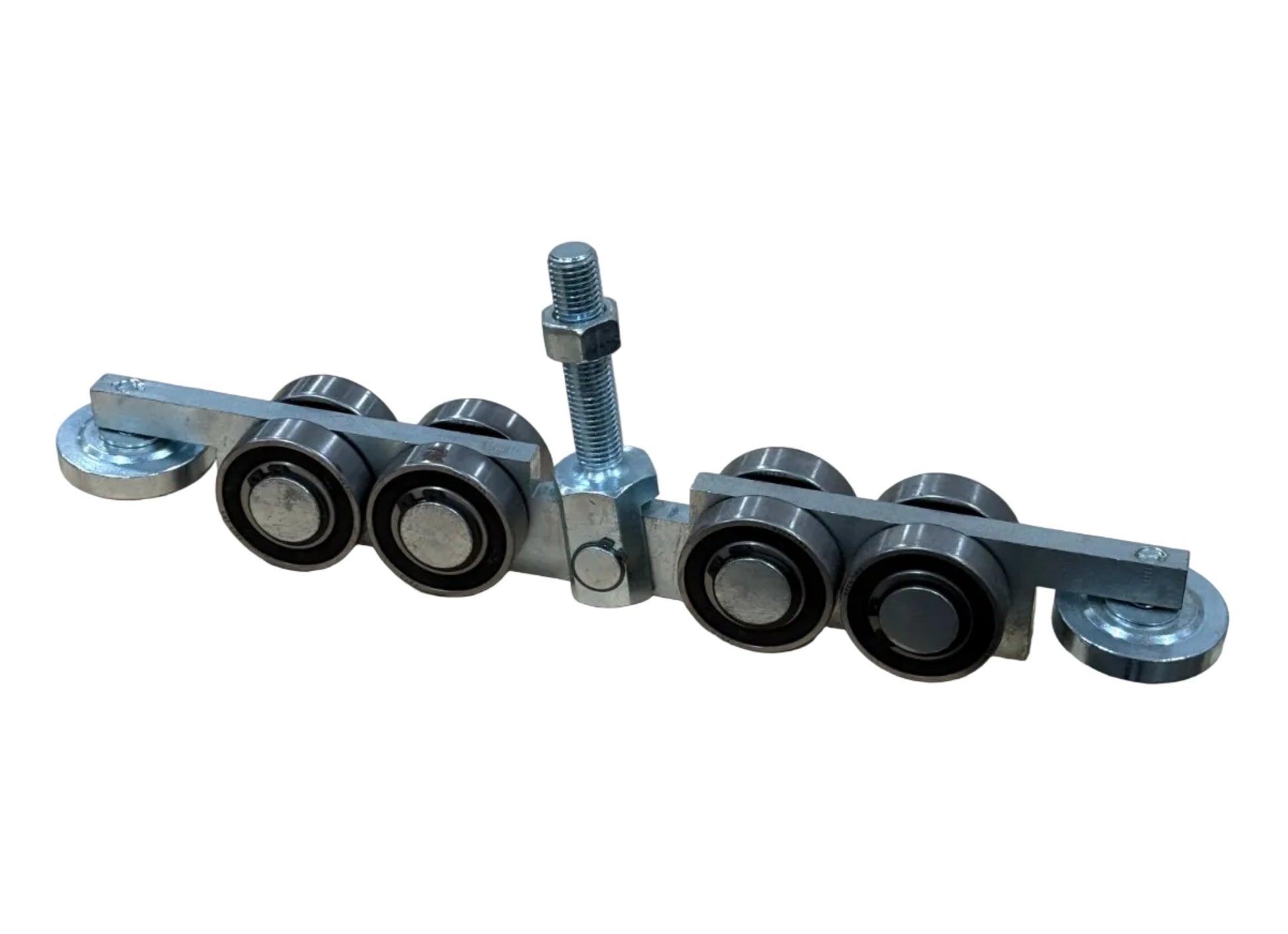

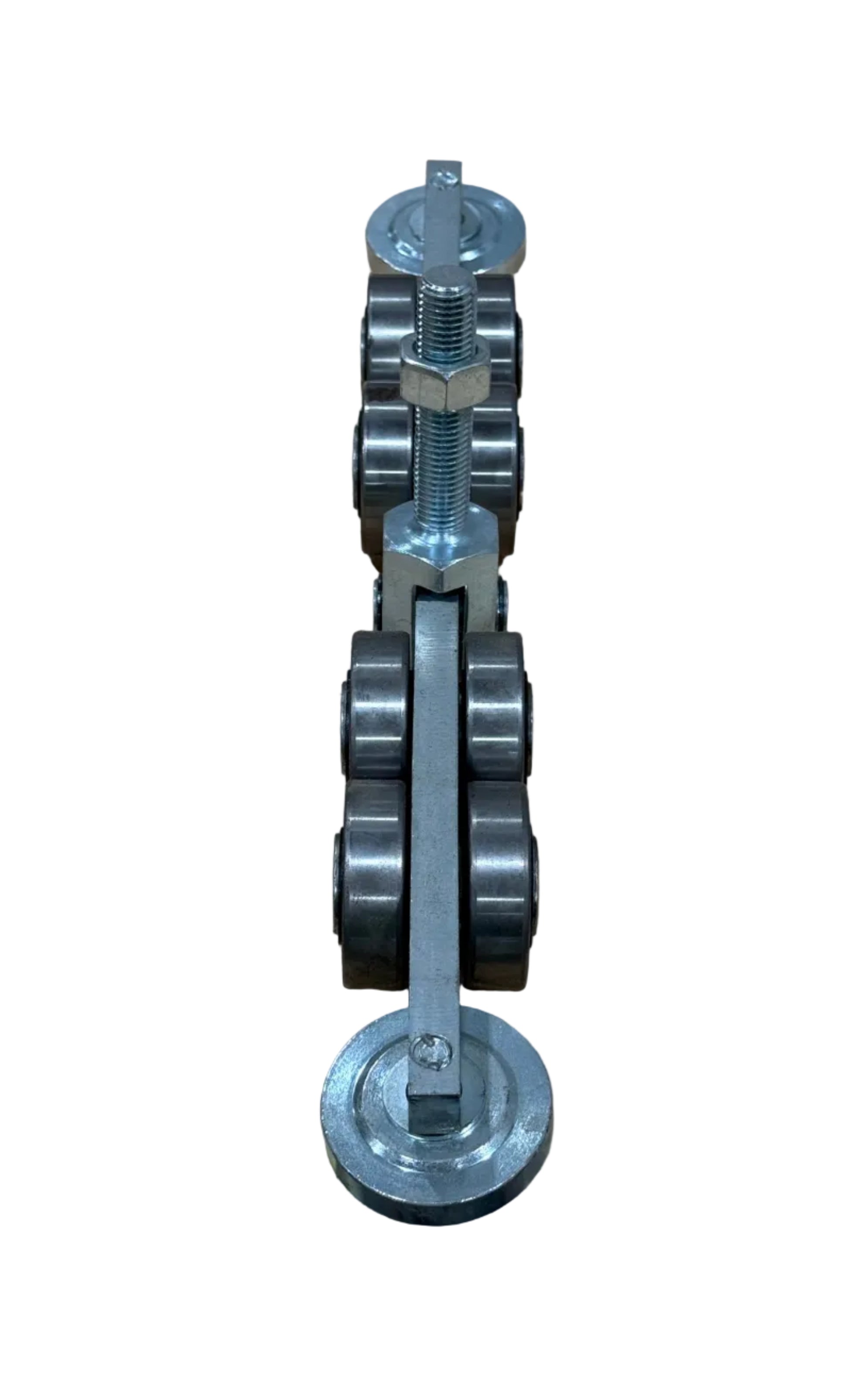

10 Wheel Truck Assembly for Square Cantilever Gates

Cantilever gates are great for quick & secure access to your property! Cantilever gates are wide enough to accommodate most trailers, cars, trucks & vehicles, allow great visibility, and are durable & adaptable to many different conditions and climates! If your cantilever gate is not made of standard round pipe, then it most likely runs on a track system rather than standard cantilever rollers. Track systems need truck assemblies to allow the gate to roll/travel!

• Swivel type
• Zinc dye coated steel
• 8 sealed lubricant ball bearing rollers, 2" (50 mm) in diameter by 9/16" (14 mm) in width, and 2 side rolling wheels to ensure truck alignment in track
• 7/8" (22 mm) diameter ball bolts with 5/8" (16 mm) or 1/2" shank
• Truck should slide freely down track while not under a load
• Once installed, gate should open freely without drag or resistance
• Truck assembly shall withstand same reaction load as track 2,000 lbs. (907.2 kg.)
• Corrosion resistant
• Hardware included

Truck brackets sold separately.

Actual product(s) may vary from pictures shown.
