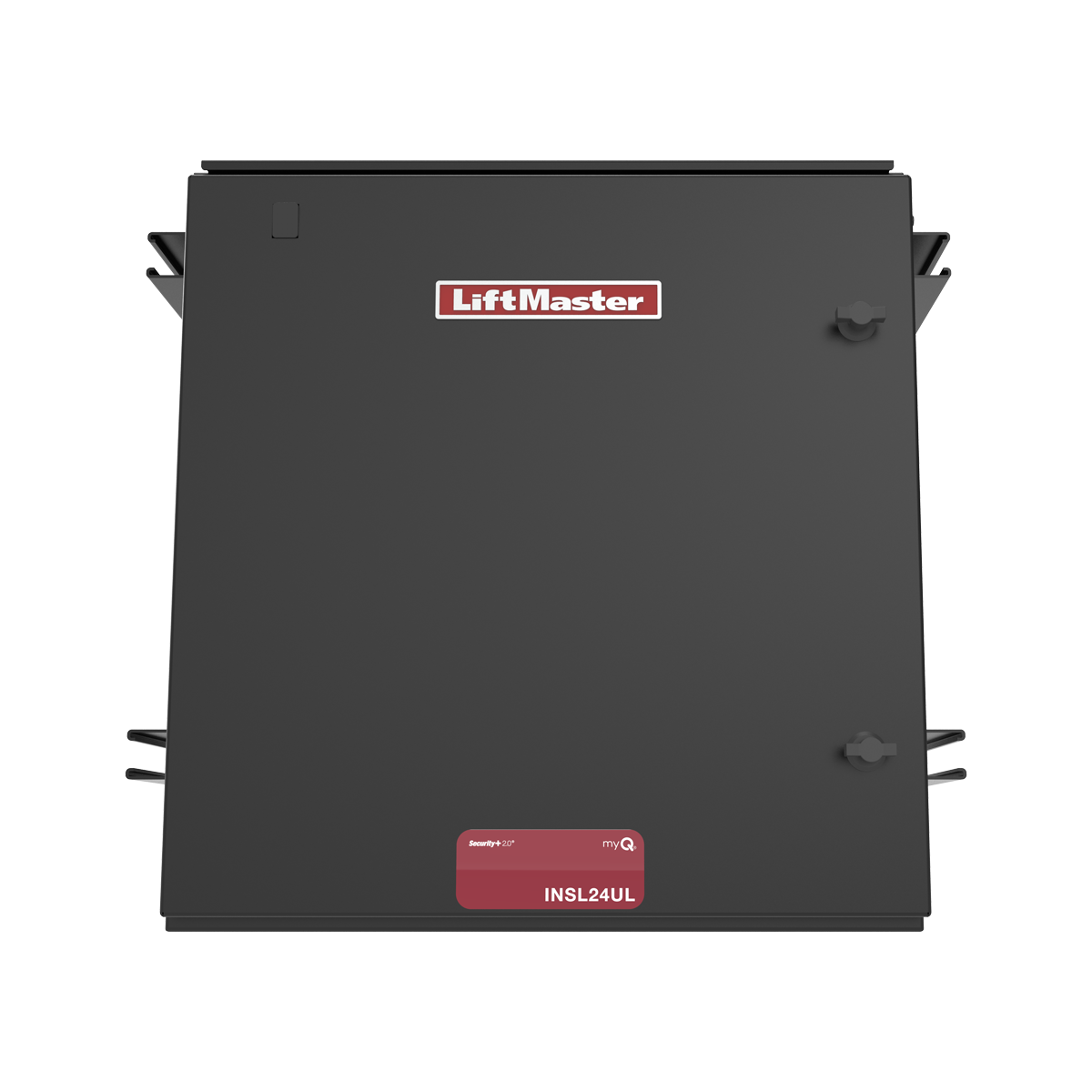

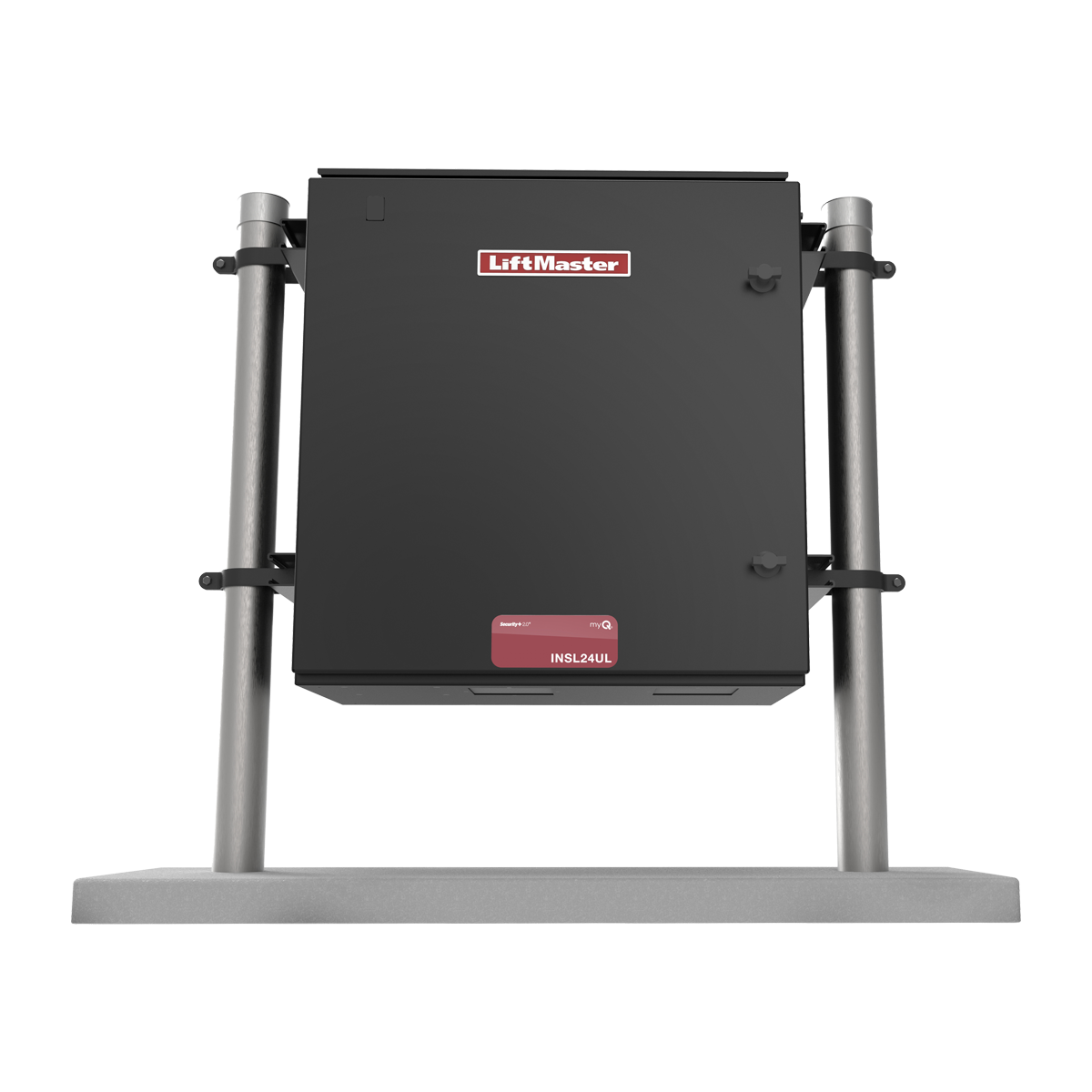

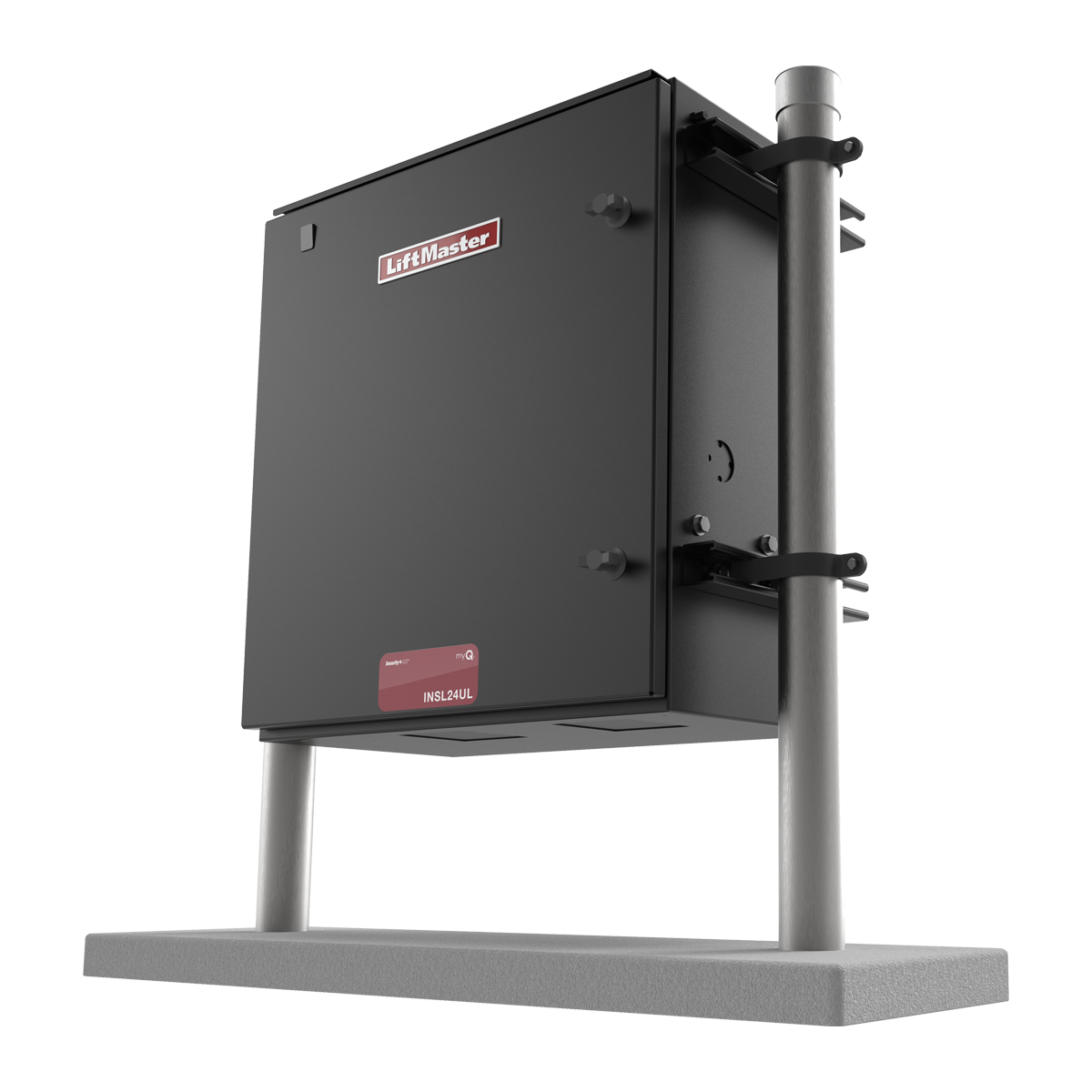

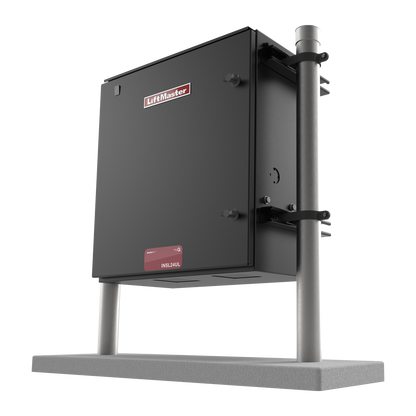

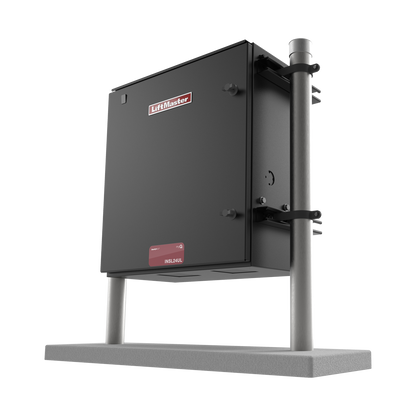

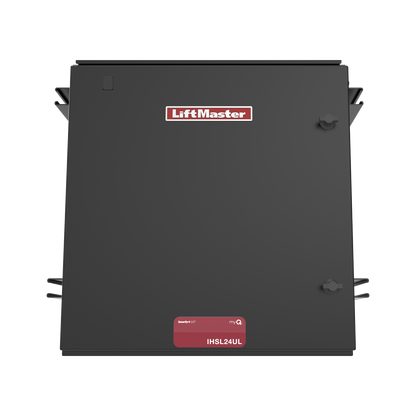

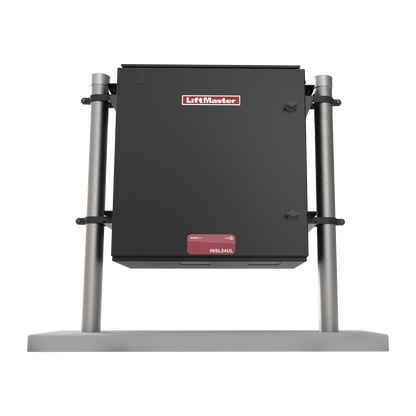

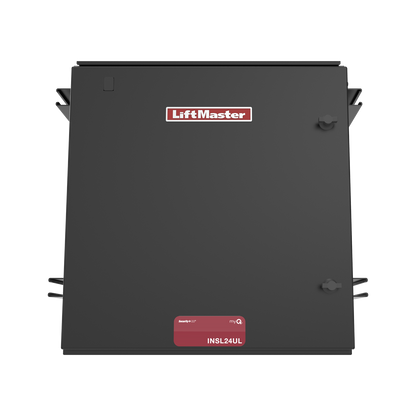

24VBLDC Continuous Duty Industrial Slide Gate Operator

Name: 24VBLDC Continuous Duty Industrial Slide Gate Operator
Brand: Liftmaster
SKU: INSL24UL
Price: 4579.99 USD
Availability: InStock

SKU: INSL24UL

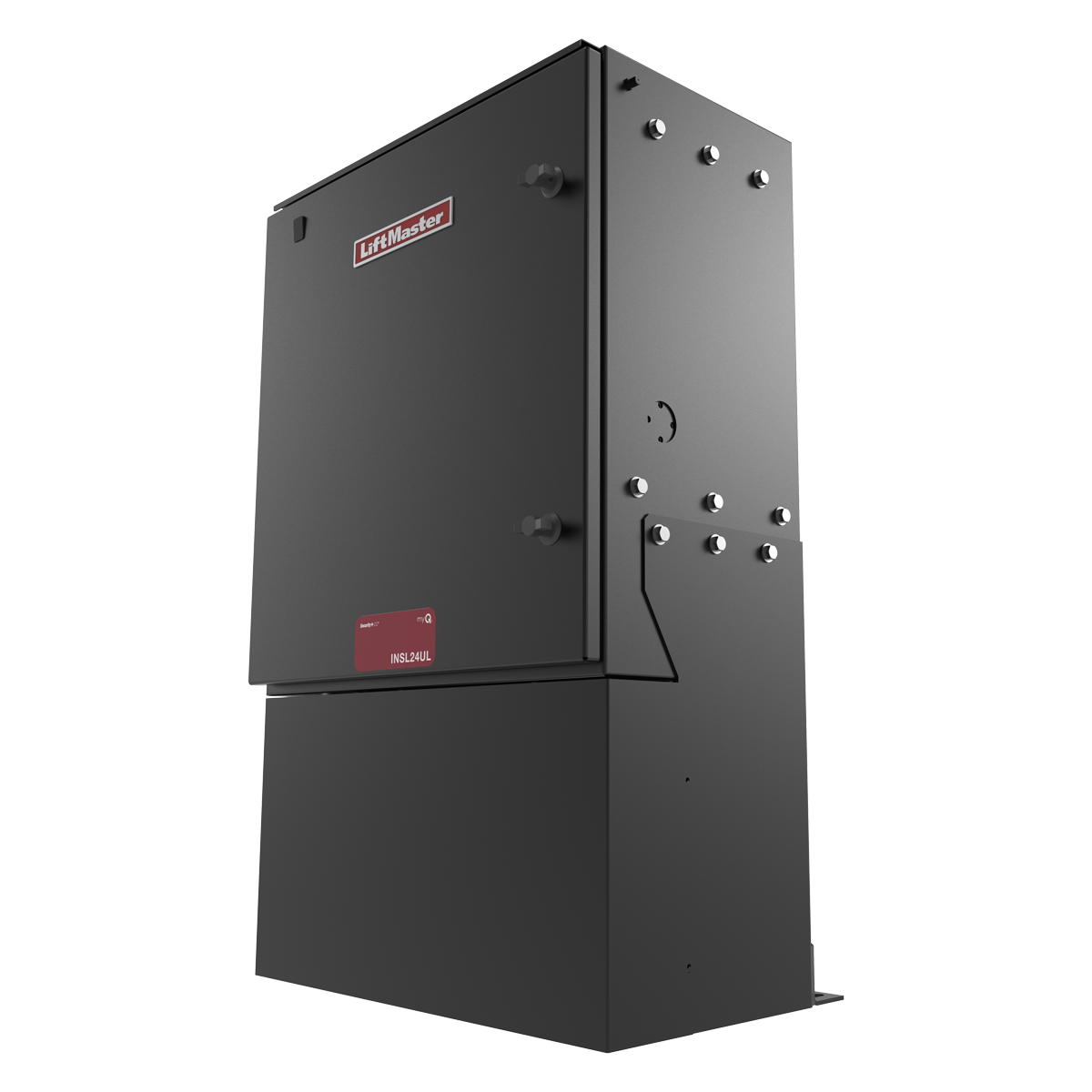

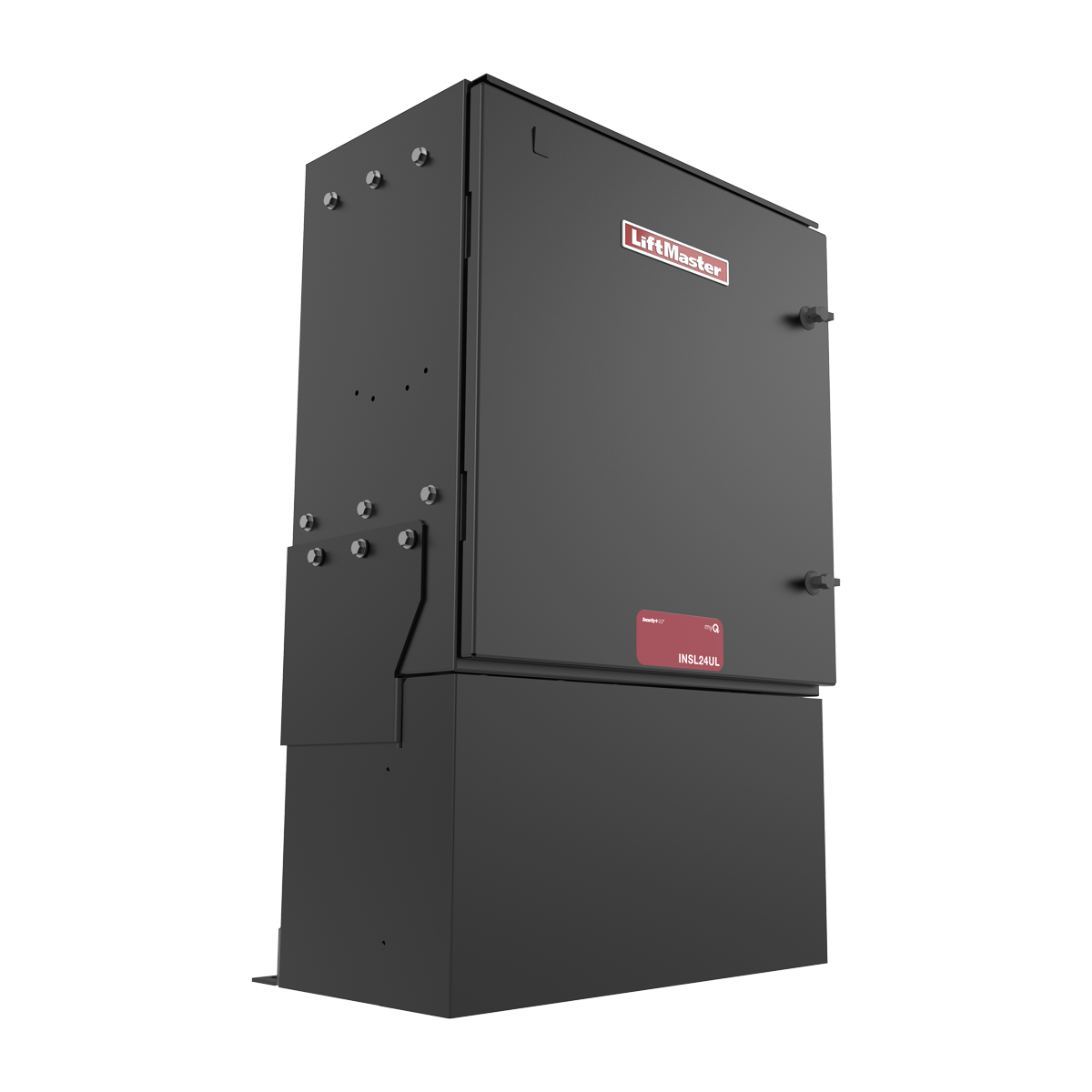

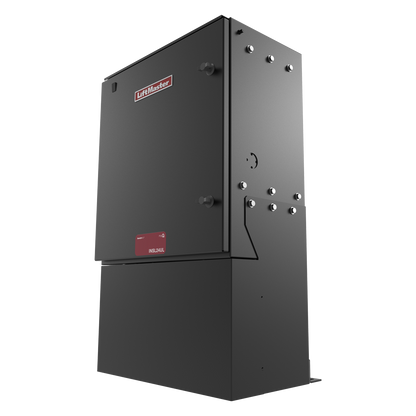

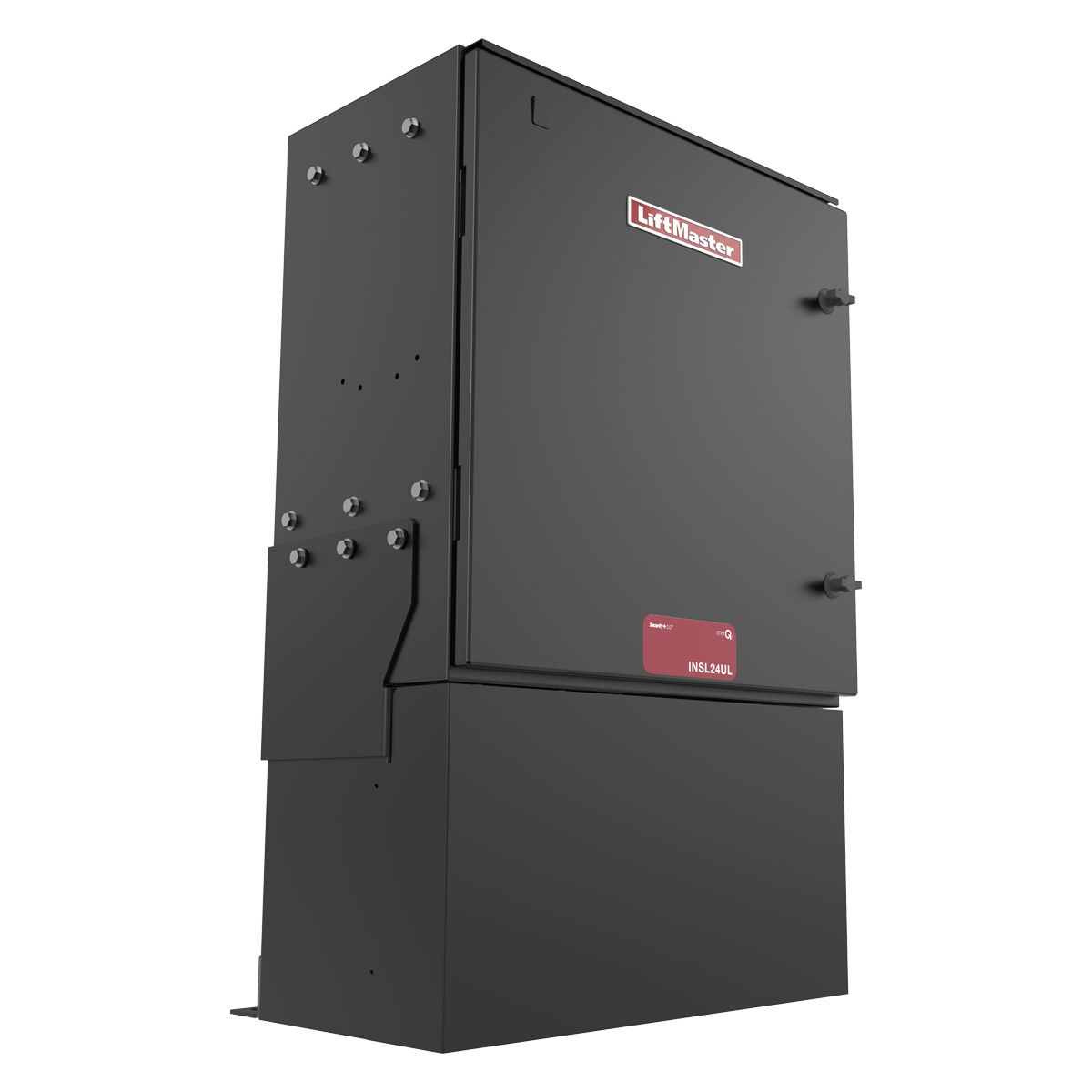

Operator Only or Operator & Riser Mount Operator Only Operator & Riser Mount

Gate Weight up to 2,200 lbs. up to 5,500 lbs.

Product variants

Quantity

If you need the INSL24UL or IHSL24UL slide gate operators with or without a riser mount, look no further!

Features
Move Industrial gates up to 2,200 (INSL24UL / WRISER) or 5,500 lbs. (IHSL24UL / WRISER) at 1 ft./sec.
Continuous-duty gate operation built with a custom industrial oil-bath gear box, size 70.
Custom Industrial brushless DC motor.

Enclosure Lockable, Weatherproof 14g NEMA 3R Steel Cabinet.

Variable cycle speed adjusts to meet application needs from .5 ft./sec. to 1 ft./sec.
Smooth start/stop operation and mid-travel reversal extend operator hardware life.
#40 & #50 industrial chains provide a pull strength of 2x the gate weight.

Manual Disconnect with direct mechanical linkage with latch.
Warranty 5 years

Smart
Powered by myQ® for full insight and control over community and facility access points. Improve warehouse efficiency and productivity with Smart Facility Access. Monitor and control multiple communities with Smart Community Access.

Two (INSL24UL / WRISER) & Four (IHSL24UL / WRISER) programmable auxiliary relays accommodate more accessories.
Wireless dual-gate communication synchronizes gate operation and eliminates costly trenching; set speed independently if needed.

Safe and Secure
Quick close and anti-tailgate quickly secures property, preventing unauthorized access.
Posilock® automatically closes the gate when it is pushed from the closed limit.
UL® listed gate operator with monitored safety entrapment protection devices.

Included Accessories
LMRRUL Monitored Retro Reflective Photo Eye reliable retro-reflective photo eye now with heater and wide beam, engineered to stay aligned; max. Range: 50 ft.
S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions.

Optional Accessories for IHSL24UL

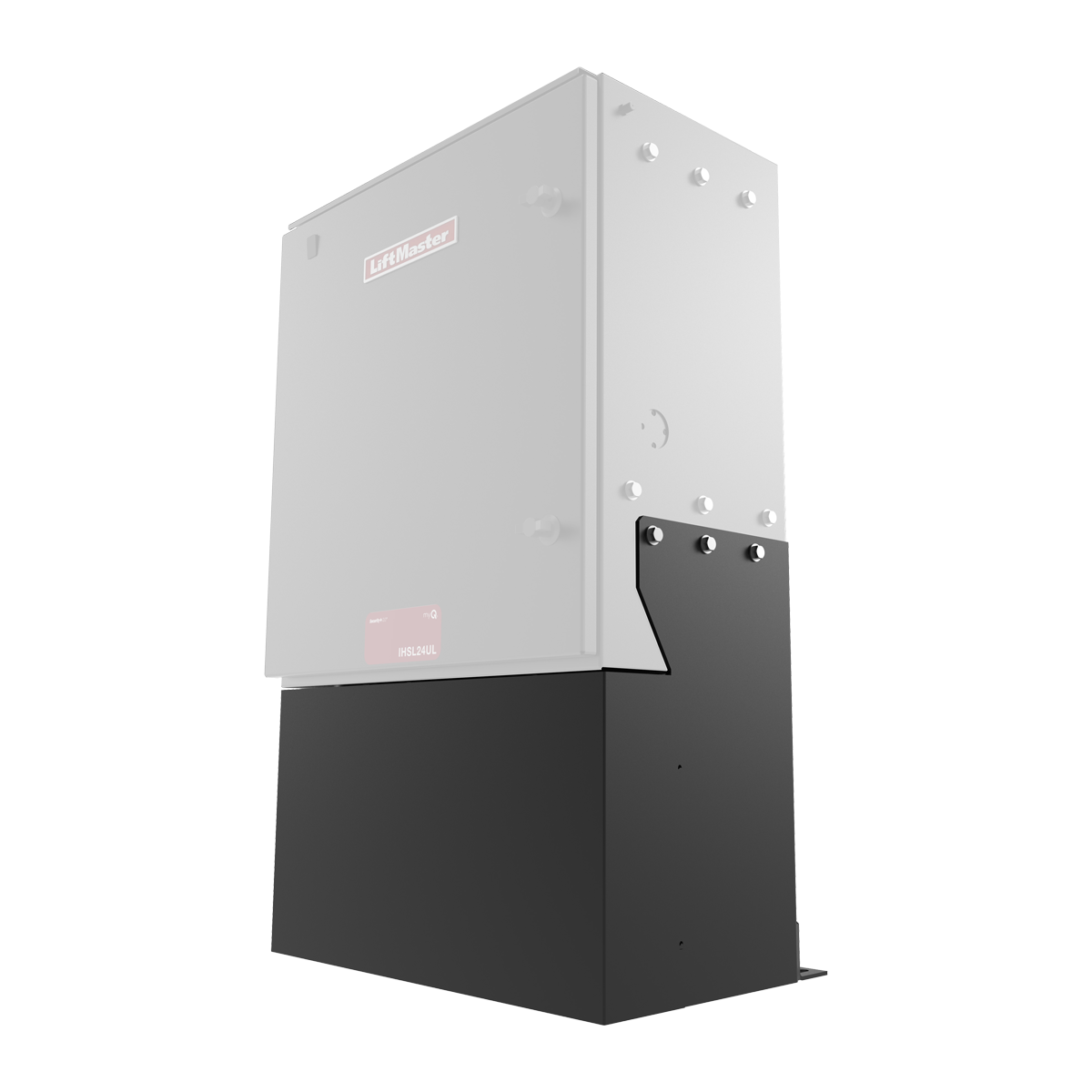

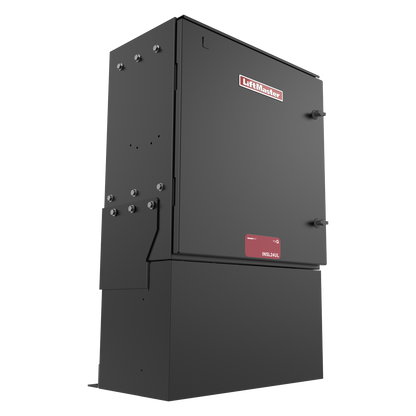

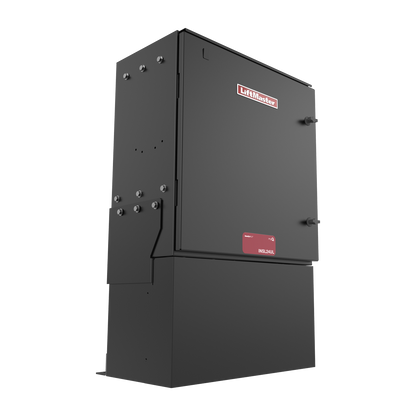

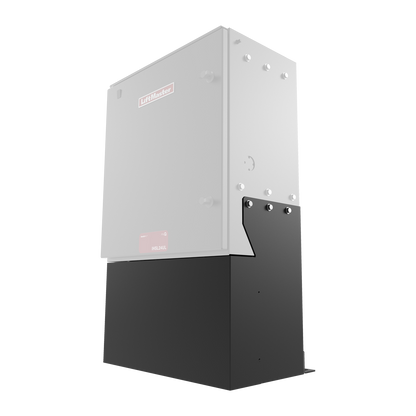

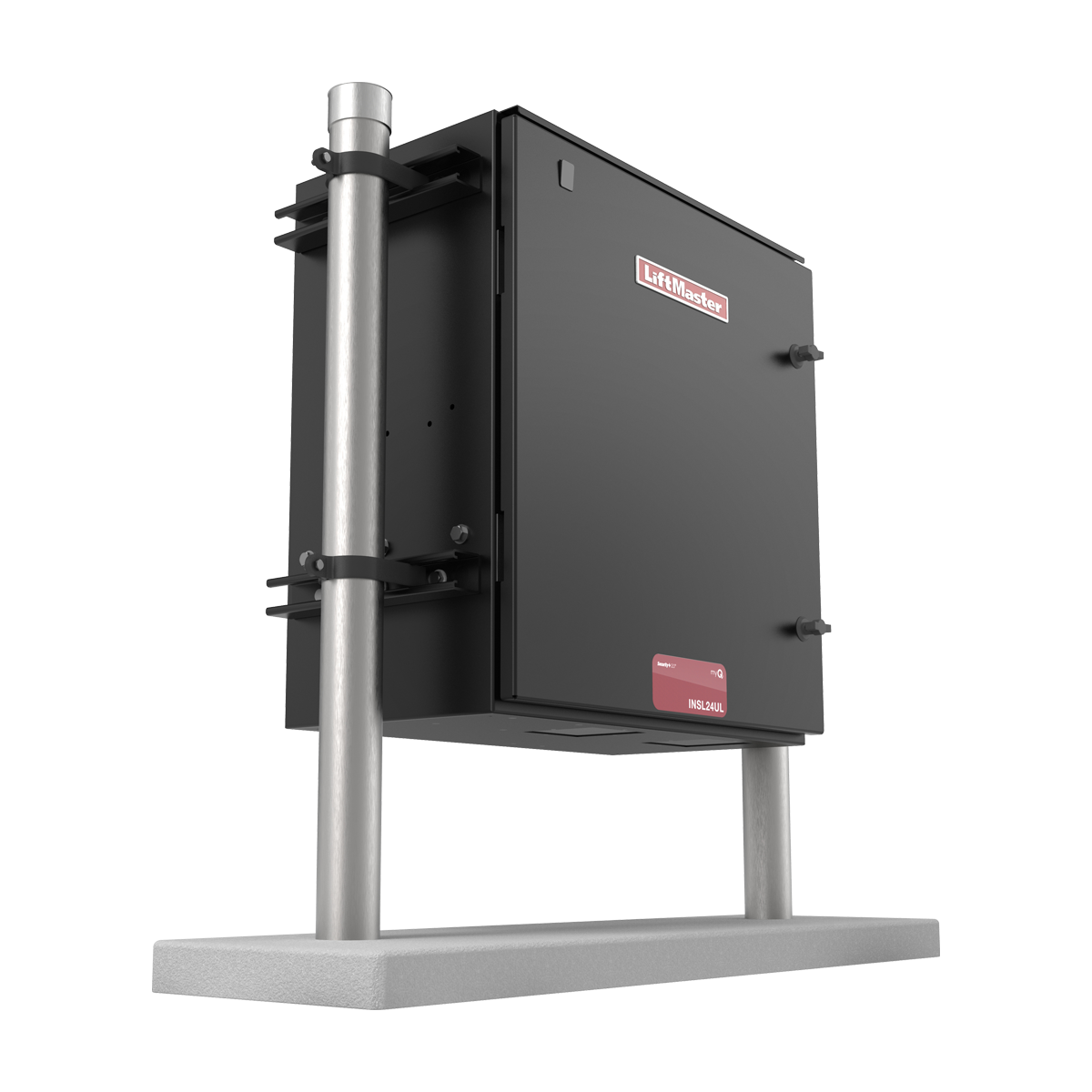

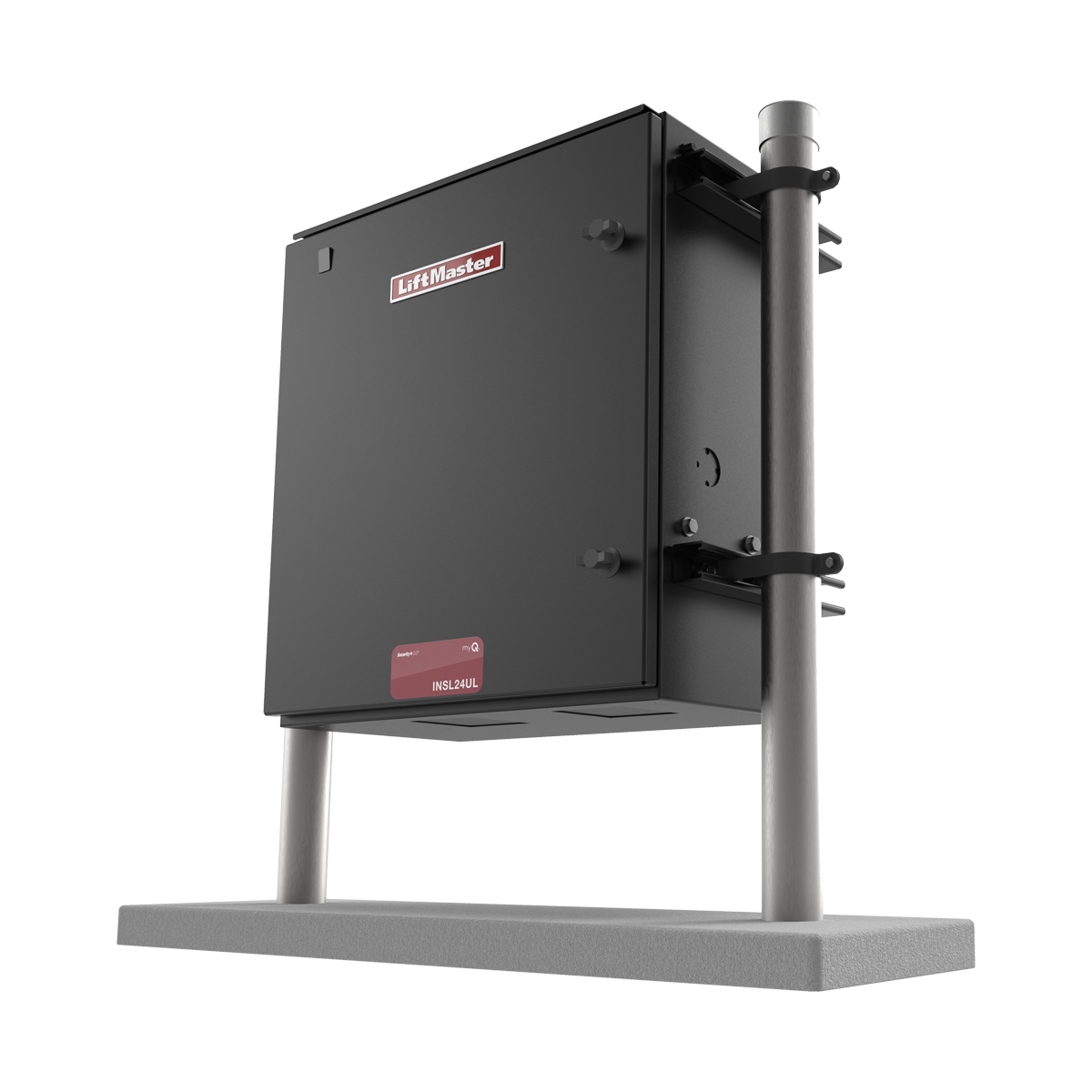

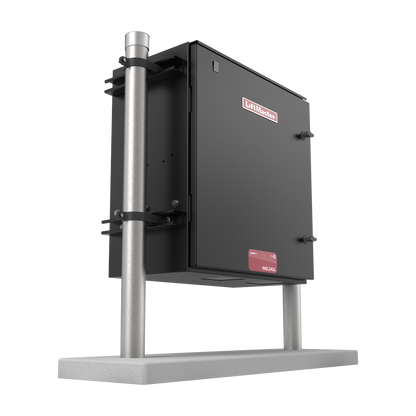

MRIN Riser Mount for Industrial Operators.
MRIN Installation support video.

Specs

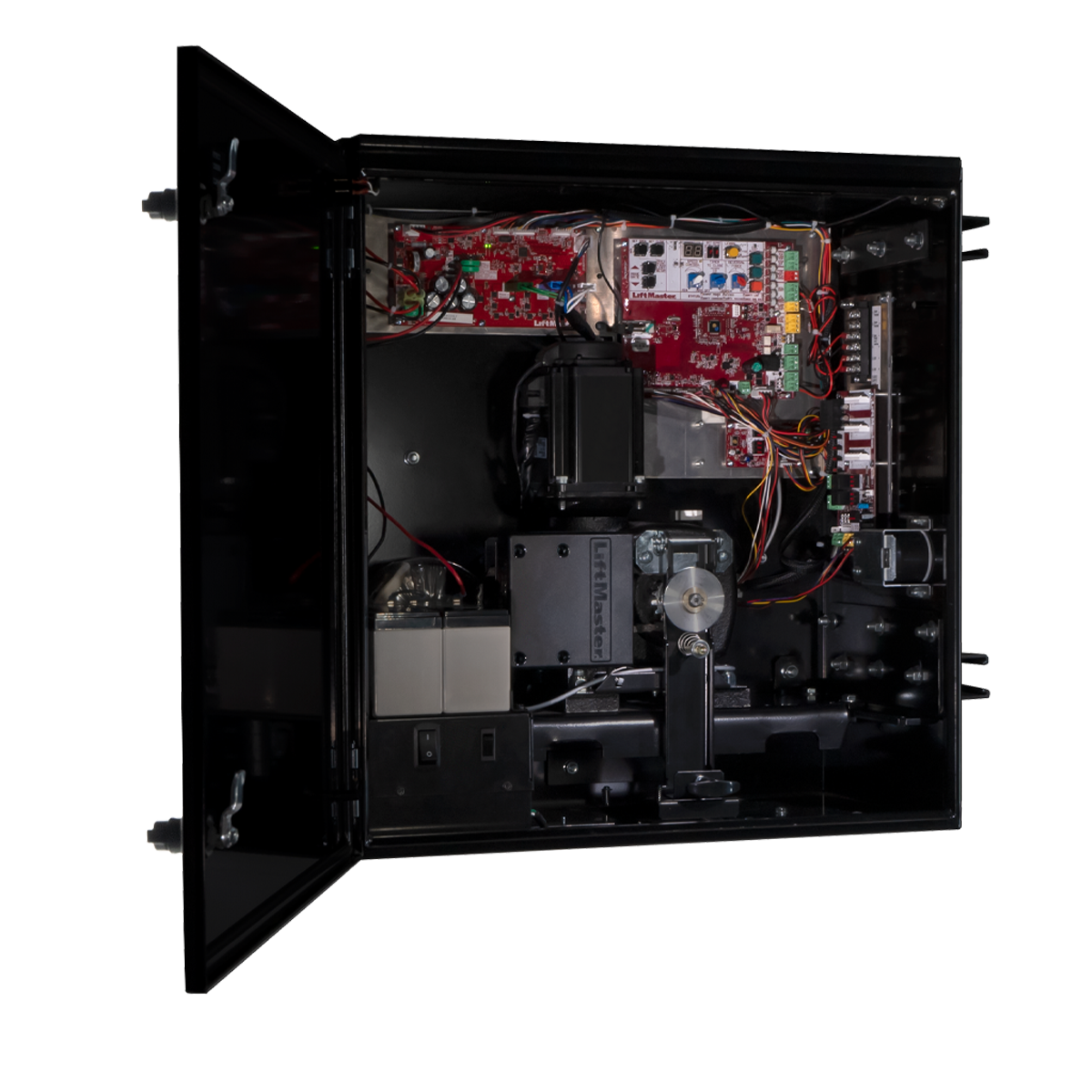

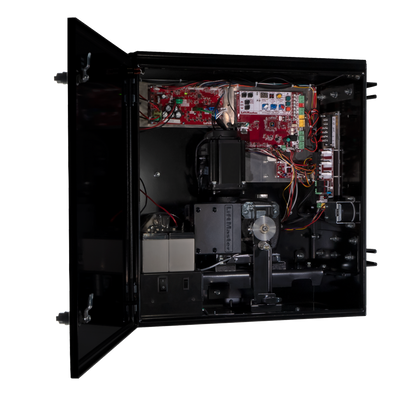

Mechanics
24VDC brushless continuous-duty motor.
Operator Duty Rating: high-cycle, high-temperature continuous duty.
Direct Drive
Chain: #40 (INSL24UL / WRISER) & #50 (IHSL24UL / WRISER) Industrial respectively.

Power
120/240V single-phase
Accessory Power: 24VDC 1 A max. output; switched and unswitched power.

Optional Kit
(3PHCONV) to convert a 3-phase input voltage of 208/240/480/575VAC to an output voltage of 120VAC.

Solar-Ready, Ultra-Reliable System delivers power when and where you need it (LMRRUL/LMTBUL - heater option not recommended for solar applications).

Industrial Grade Design
Chassis: Constructed with 1/4 in. Steel, Powder Coated.
Housing: powder-coated, 14-gauge steel oil -tight, weatherproof NEMA 3R lockable cabinet
UL Usage Classification: II, III, and IV
Operator Weight: 129 & 142 lbs. respectively

Dimensions:
Height: 30.1”.
Width: 27.5”
Depth: 17.1”

Variable Gate Speed:
0.5 ft to 1 ft. per second.

Standard Features:
Inherent Reversing Sensor detects obstructions and reverses gate.
Posilock automatically closes the gate when it is pushed from the closed limit.
Manual Disconnect allows gate to be opened manually when released.
Monitored Safety Inputs 3 main board, 3 expansion board.
Security+ 2.0® On-Board Radio Receiver: up to 50 remote controls (unlimited with 811LMX/813LMX).
LED Diagnostic Display simplifies installation and troubleshooting
Programmable Auxiliary Relays: 4 relays make adding additional features easy.
HomeLink® Compatible version 4.0 or higher (may require an external adapter depending on the model and year of your vehicle. Visit HomeLink.com for additional information).

HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
HomeLink® is a registered trademark of Gentex Corporation.
