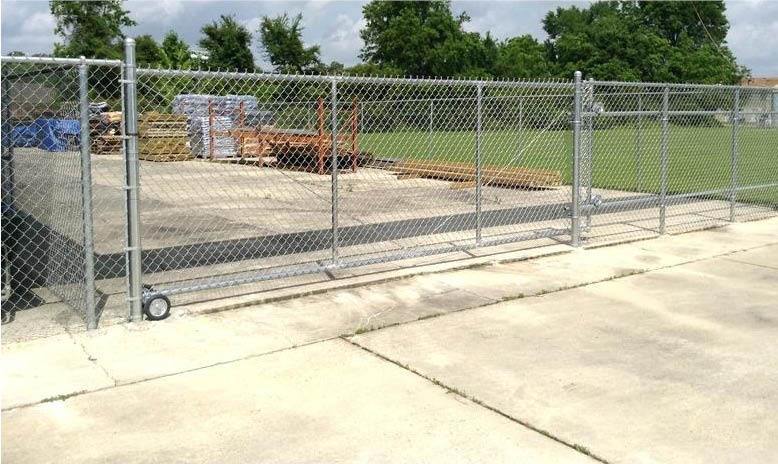

Galvanized Chain Link Rolling Gate

Gates are excellent security additions for residential and commercial properties and our galvanized chain link rolling gate is perfect for properties that need a gate that uses less space or is on any kind of slope. This gate will provide extra security to your property and has the durability and longevity of a typical chain link gate. This gate is MANUAL ONLY; cannot be used with automatic openers.

• Galvanized steel
• Rust resistant

• Doesn’t need as much space as a swing or cantilever gate


THIS IS JUST THE GATE. HARDWARE AND POSTS SOLD SEPARATELY.

Fabrication Details

Frame: We fabricate these gates in house with 1-5/8" CR20 (20 weight) pipe. The gate's total length is 15" more than the opening. If a gate has barbwire, the vertical pipes on the end are extended 1' above the gate and has 3-strands of barbwire going across with the possibility of additional vertical barbwire supports throughout the top horizontal pipe depending on gate length.

Wire: Overall gate height is the same as fence height therefore we use the same height fabric (chain link wire) to cover the gate. Barbwire adds 1 extra foot to the overall height of the gate.

Fittings: As well as the fabric, same height tension bars are used to pull the fabric tight on each end and held in place with 1-5/8" tension bands. 6-1/2" wire ties are used to tie the fabric to the other vertical pipes. 1-5/8" aluminum caps are used to cap the vertical ends. If the gate has barbwire, 1-5/8" end/brace bands are used to hold the barbwire and 1-5/8" aluminum caps are used to cap the vertical pipes. All bands are tightened with a 5/16" x 1-1/4" carriage bolt & nut.

Additional Materials Needed

Along with the gate, you'll need 2 runs of pipe for the gate to roll on, 2 rear wheel assemblies, Safe-T line track brackets (amount varies on gate length), and 1 double wheel assembly.

Roller pipe is 4048000 - 1-5/8" by .110 by 21' Galvanized Commercial CR40. You need 2 runs that are at least the length of the gate plus however long more to reach the next post (if necessary) to attach to a safe-t line track bracket.

The rear wheel assembly is 10984. They attach at the end of the gate and roll on the roller pipe. Need 2, 1 for each roller pipe.

You need 2 Safe-T line track brackets per post and depending on your post spacing, need to match total gate length plus extra feet to next post (if necessary).

Last but not least, you'll need a double wheel assembly to support the weight on the opening end and roll. The wider the assembly, the less likely it will wobble.
The recommended double wheel assembly is 10983 which is an 8"-wheel, 12" wide double wheel assembly. We also have 10982 which is a 6"-wheel, 6" wide double wheel assembly.
